Starcharge

Venus 30 V2

Venus 30 V2

€15.500,00 EUR
€15.500,00 EUR
Sale Sold out
(cena bez DPH: €12.601,63 EUR)
Taxes included. Shipping calculated at checkout.

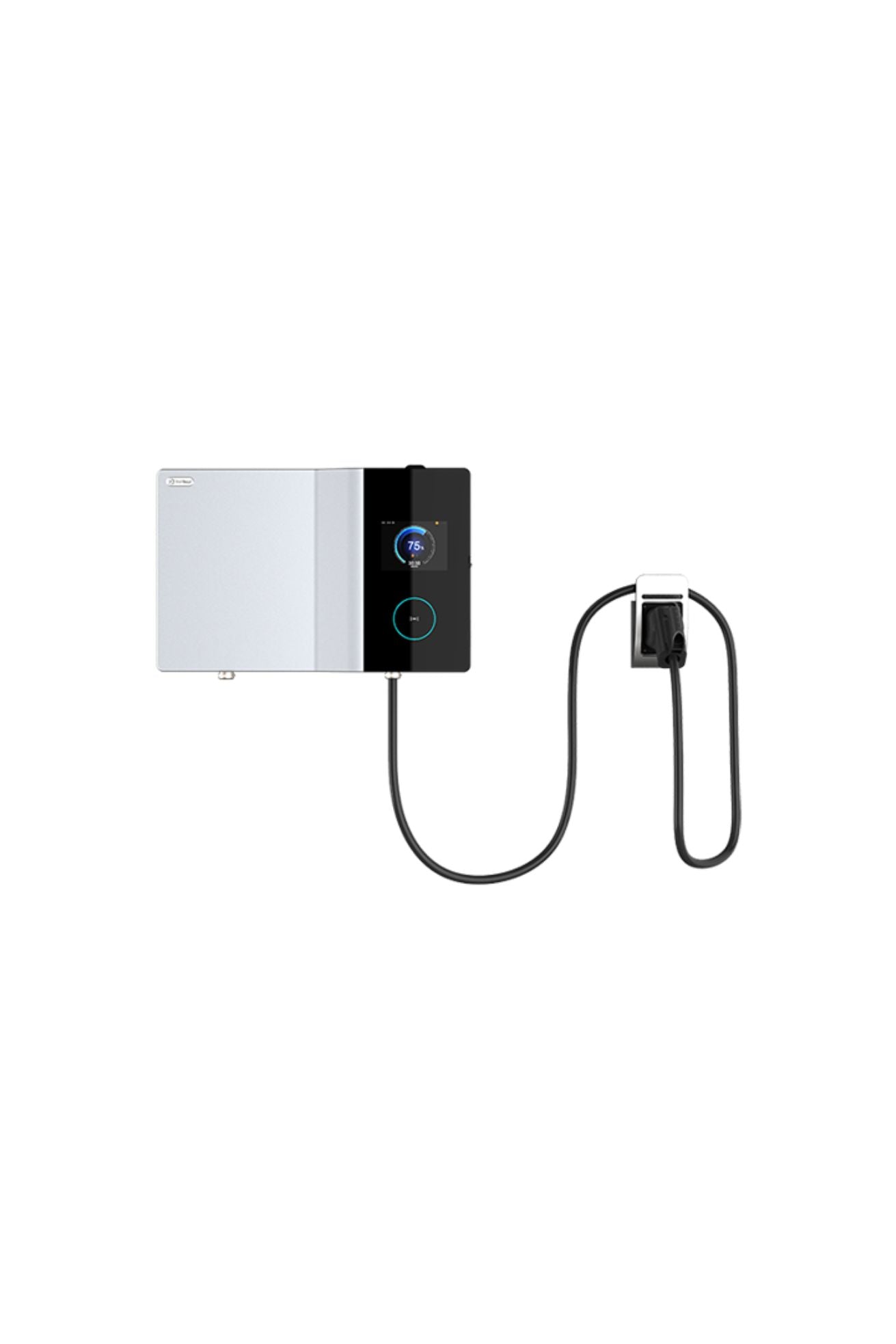

Venus 30 V2 is a powerful 30 kW DC fast charger for public and commercial spaces.
Efficiency up to 95%, output current up to 80 A. It has a CCS2 connector, 7″ touch LCD and RFID reader.
The compact design allows for wall or pole mounting.

View full details

Venus 30 V2

Venus 30 V2 is a powerful 30 kW DC fast charger for public and commercial spaces.
Efficiency up to 95%, output current up to 80 A. It has a CCS2 connector, 7″ touch LCD and RFID reader.
The compact design allows for wall or pole mounting.

Výrobca: Starcharge

Typ: DC Charging Station

SKU:

Venus 30 V2
Venus 30 V2
Variant SKU Cena bez DPH Cena s 23 % DPH
Venus 30 V2 €12.601,63 €15.500,00

Suitable for

Company vehicles

Venus 30 V2 reduces fleet downtime, as 30 kW DC power can recharge a company vehicle several times faster than a conventional AC wallbox; 80 A current will add tens of kilometers of range during a business meeting. The integrated MID electricity meter, RFID reader and full OCPP 1.6 J support allow you to assign each consumed kWh to a specific car and transfer data directly to fleet software, simplifying cost centers. The compact aluminum body (680 × 440 × 280 mm) can be mounted on a wall or pole in an outdoor parking lot without expanding the built-up space. Find out more

Charging for employees

Companies can offer employees the attractive benefit of a quick recharge before going home: simply touch the company RFID card to the 7-inch touchscreen to start charging and automatically record consumption in the HR system. Dynamic load management available in the OCPP backend ensures that the 30 kW load does not exceed the capacity of the circuit breaker, so expensive connection modifications are not necessary. The robust IP55/IK08 design withstands daily use even on small company sites. Find out more

Public institutions

Schools, hospitals or ministries will get a universal DC point for both official and visitor vehicles, while the MID meter and OCPP give the possibility to charge energy separately to budget chapters or EU projects. The touch UI displays statistics in real time and the RFID gateway will allow charging only to authorized persons, thus preventing misuse. Compact dimensions and IP55 protection make installation easier even in historical centers while maintaining aesthetics. Find out more

Stores - charging that prolongs shopping and increases sales

A single 30 kW DC station will attract electric car drivers to the shopping center parking lot, as it can recharge enough for the next trip during a 20-minute shopping trip. The 7″ LCD makes operation intuitive, while the 5 m CCS2 cable covers various charging port positions. Accurate metering and OCPP connection to payment gateways allow for real-time charging and increased secondary sales for the store. Find out more

Public parking lots - 90% of revenue from each kWh at own expense

Venus 30 V2 offers a compact yet durable solution for P+R parking lots or highway rest areas: the aluminum housing with IP55 and IK08 protects the electronics from vandalism and weather from -30°C to +50°C. Efficiency of up to 95% reduces operating costs, while remote monitoring via 4G/Wi-Fi allows the operator to detect a fault before drivers notice it. One CCS2 connector is enough for quick vehicle changes and minimizes queues on busy sections. Find out more

Cities and towns

Local governments can deploy the fast charger in parking lots near offices or cultural centers - the compact 50-kilogram module is mounted on a public lighting pole or wall without complex foundations. IP55 protection, an operating range of -30 °C to +50 °C and an emergency STOP button guarantee safe operation in various climatic conditions, while the 7" display can be switched to Slovak and supplemented with the city's coat of arms for better identification of the service. Find out more

Commercial buildings (exterior)

Administrative centers will appreciate that the Venus 30 V2 integrates into an existing BMS via Ethernet or 4G and provides online information on consumption and station status. Fast DC charging reduces the time spent in the garage for tenants and their clients, freeing up parking spaces and increasing their turnover. The aluminum body with emergency stop switch meets strict regulations for fire and safety audits. Find out more

Residential buildings - outdoor parking

In apartment complexes, a 30 kW DC station serves as a shared fast "boost" for residents who need to charge their cars outside of the night AC tariff. RFID identification will distinguish apartments, accurate metering with MID certification will guarantee fair billing, and OCPP will connect the stations with the house software without an expensive proprietary gateway. IP55/IK08 resistance eliminates the need for additional shelters outdoors. Find out more

Industry and logistics

For delivery and courier fleets, 30 kW of power ensures fast inter-directional charging – 15 minutes is enough for dozens of kilometers, so the vehicle is not left out of service. The robust IK08 construction and aluminum withstand dusty or humid warehouse environments, and thanks to wall installation, the charger can also be installed between ramps without limiting pallet handling. Online diagnostics and remote firmware updates minimize service trips. Find out more

Station operators

Venus 30 V2 offers an excellent price-performance ratio for DC grid: 95% efficiency and an actively cooled module save electricity, while compact dimensions reduce construction costs on the foundation. OCPP 1.6 J, full RFID and support for smart-charging profiles facilitate roaming integration, and remote diagnostics and firmware update functions shorten MTTR and maintain availability above 99%. Find out more

Partners and resellers

For distributors, the Venus 30 V2 is attractive due to its unified 400 V input architecture, pre-installed 4G modem and five-meter CCS2 cable, which reduce the number of optional items in stock. The quick “plug-and-play” installation, combined with CE certification and modern design, makes it easy to convince customers and creates room for higher margins; in addition, remote updates minimize warranty interventions by the partner. Find out more

📊 Technická špecifikácia

Základné parametre
Rozmer výška x šírka x hĺbka 680 mm, 440 mm, 280 mm
Materiál Aluminum
Počet CCS2 káblov 1
Dĺžka CCS2 kábla 5.0
Je možná iná dĺžka nabíjacieho kábla No
Hmotnosť 50.0 kg (Default Title)
Elektrické parametre
Maximálny DC výkon nabíjacej stanice (kW) 30.0
Maximálne DC výstupné napätie (V) 1000
Maximálny prúd DC výstupu (A) 80
Menovité vstupné napätie (V) 400V
Obsahuje elektromer s certifikáciou MID ✅
Elektrické ochrany Overcurrent protection, Surge protection, Undervoltage protection
Podporované protokoly OCPP 1.6-J
Možnosti pripojenia ETH, 4G, WiFi
Možnosti autorizácie RFID - Mifare, Remote
Enviromentálne parametre
IP krytie IP55
Odolnosť IK IK08
Dokumenty
Produktový list
