AgeVolt G5 — product documents
Article contents
G5 is a portable charger. Choose the guide for the supplied configuration when using it, and the current package when ordering or comparing options.
Operation and current packages
When connecting
Use the specified connector and adapter. Available power depends on the electrical connection, settings and car. Socket condition and connection suitability must match the charger's intended use.
Original product description and reference images

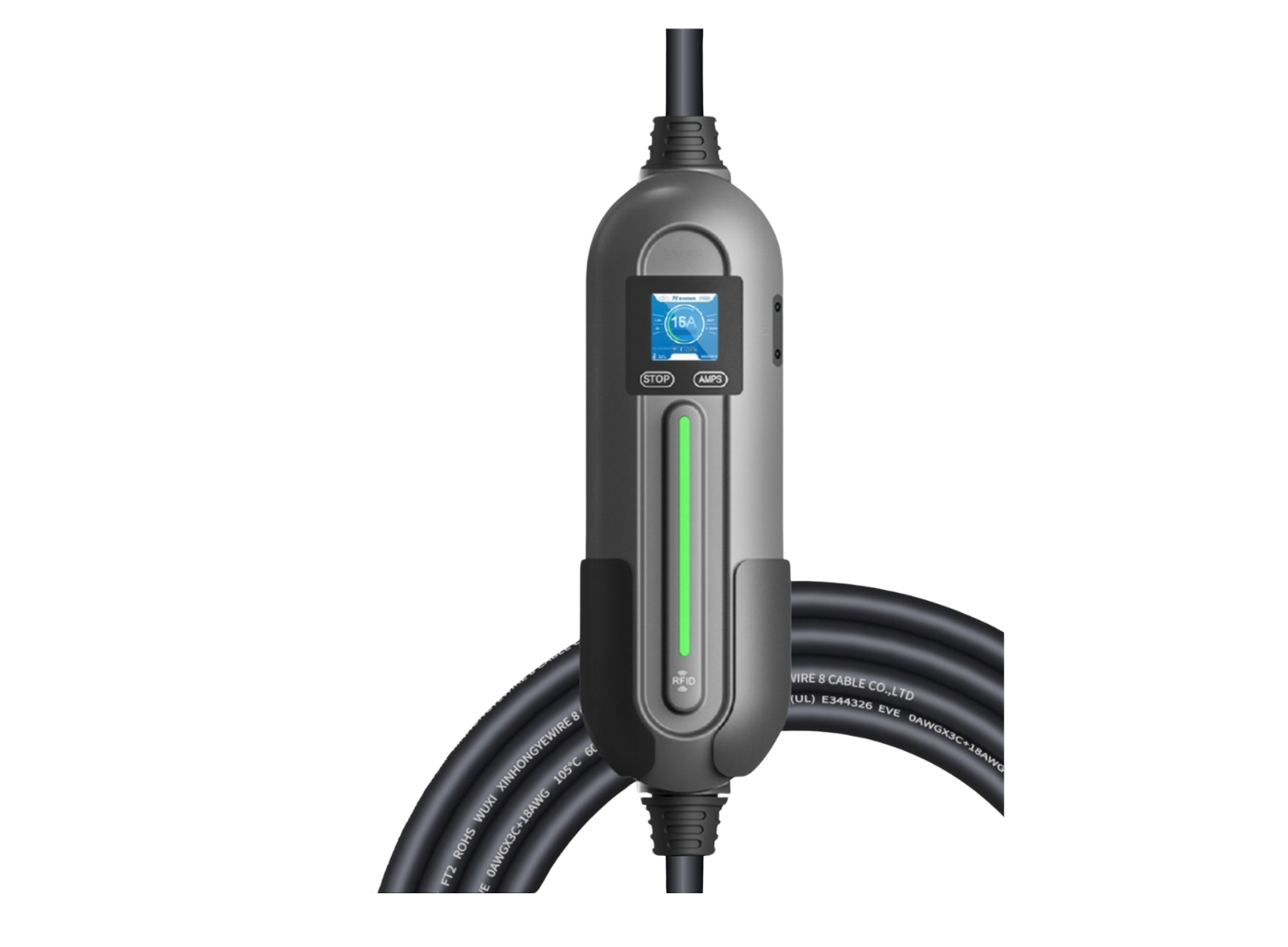

A smart portable charger for your electric vehicle. Charge through a cable at wallbox speed (22 kW) wherever you are, without modifying the electrical installation. AgeVolt Smart Cable Charger connects to the internet using Wi-Fi or 4G.
Along with the charger, you gain full control through MyAgeVolt — a digital platform providing RFID authorization, remote management and control, charging monitoring and charging history. Companies can even use it to automate reimbursement of employees' home charging.
The charging station connects using a CEE 400 V/32 A plug, and the package also includes an adapter for a standard domestic 230 V/16 A socket. It is sold in a practical eco bag made from recycled PET bottles.
Features:
- OCPP 1.6J — connection to MyAgeVolt and other platforms
- APP Control — control through a mobile application
- Bluetooth 5.2, Wi-Fi 2.4G / 5G, 4G module (with SIM card option)
- RFID — compatible with ISO 14443 Type A cards
- The charging station can also be wall-mounted using a bracket
Safety features:
- Protection against overvoltage, undervoltage, overload, short circuits, overheating, leakage current and lightning
- RCD protection: Type A + DC 6 mA
- UV resistance

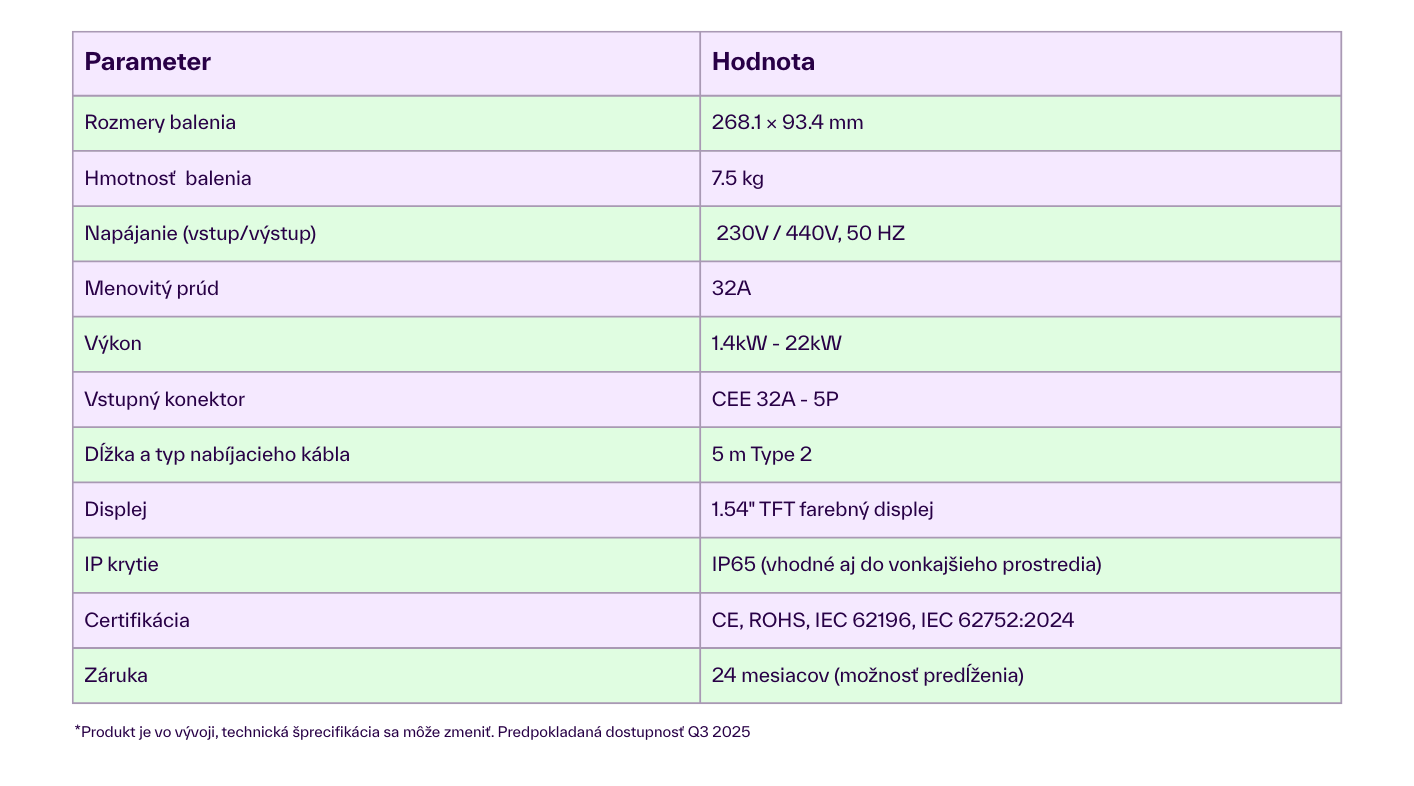

Technical specification:
Related guides and solutions
AgeVolt G5 is a portable charger. The product overview lists basic device features. Use the user guide for operating instructions.
G5 documents
View G5 and available packages · Charging and authorization in MyAgeVolt
