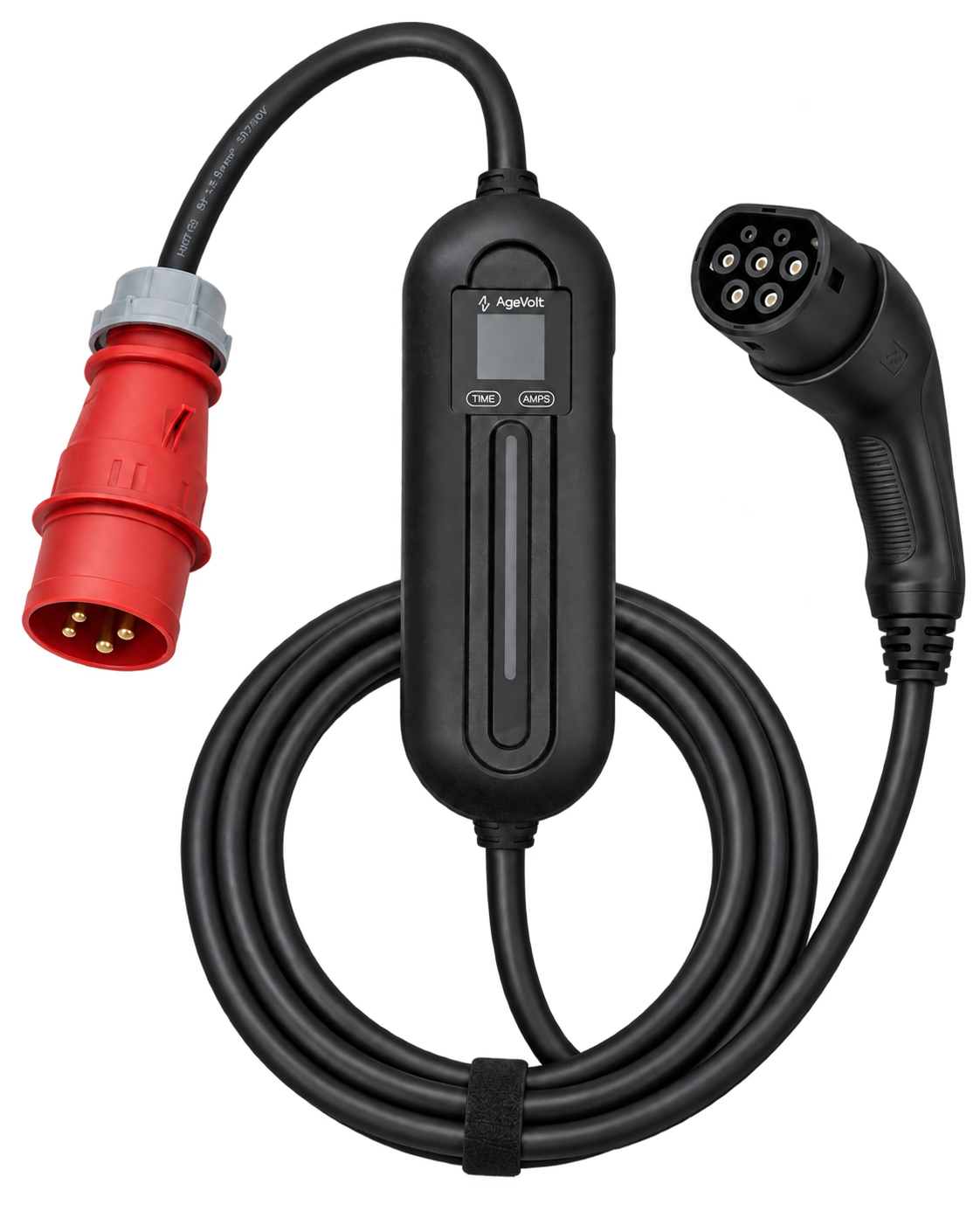

AgeVolt Smart Cable Charger
Smart portable charger for your electric car. Charge via cable at wallbox speed (22 kW), wherever you are, without interfering with the electrical installation. The AgeVolt Smart Cable Charger connects to the internet via WiFi or 4G.
Together with the charger, you gain complete control thanks to MyAgeVolt - a digital platform that provides authorization via RFID, remote management and control, charging monitoring, displays charging history, and even allows companies to automatically refund employees' home charging.
The charging station is connected using a CEE 400 V/32 A plug, but the package also includes a reduction to a classic domestic 230 V/16 A socket. It is sold in a practical ECO bag made from recycled PET bottles.
Features:
- OCPP 1.6J – connection with the MyAgeVolt platform and others
- APP Control – control via mobile application
- Bluetooth 5.2, WiFi 2.4G / 5G, 4G module (with SIM card option)
- RFID - compatibility with ISO 14443 Type A cards
- The charging station can also be mounted on the wall using a bracket
Safety features:
- Protection against: overvoltage, undervoltage, overload, short circuit, overheating, current leakage, lightning
- RCD protection: Type A + DC 6 mA
- UV resistance
Charge in a modern way, without worries and with clarity!
| Variant | SKU | Cena bez DPH | Cena s 23 % DPH |
|---|---|---|---|
| AgeVolt Smart Cable Charger | AgeVolt_AGV-G5 | €624,39 | €768,00 |
📊 Technická špecifikácia
| Základné parametre | |
|---|---|
| Rozmer výška x šírka x hĺbka | 268 mm, 93 mm |
| Materiál | Plastic |
| Farba | |
| Počet AC Type 2 | 1 |
| Možné dĺžky AC kábla (m) | 5 |
| Možnosti kábla pre AC | Straight |
| Je možná iná dĺžka nabíjacieho kábla | No |
| Hmotnosť | 7.5 kg (Default Title) |
| Elektrické parametre | |
| Maximálny AC výkon nabíjacej stanice (kW) | 22.0 |
| Menovité vstupné napätie (V) | 230V, 400V |
| Obsahuje elektromer s certifikáciou MID | ❌ |
| Elektrické ochrany | Overcurrent protection, Undervoltage protection, Surge protection |
| Podporované protokoly | OCPP 1.6-J |
| Možnosti pripojenia | WiFi, Bluetooth, 4G |
| Možnosti autorizácie | RFID - Mifare, Remote |
| Enviromentálne parametre | |
| IP krytie | IP65 |
| Dokumenty | |
| Produktový list | |
