An intelligent AC charging station for electric vehicles with one charging point and a maximum charging power of 22 kW. The charger can be configured according to the individual needs of its owner, who can also choose their own branding. It is suitable for installation both indoors and outdoors.

The user interface, charging operation, communication and advanced functions are provided by TouchPoint – an integrated touch interface. Once connected to a digital platform such as MyAgeVolt, the solution also provides remote management, monitoring and other extended functions.

Installation:

• on a wall, provided the selected location allows it,

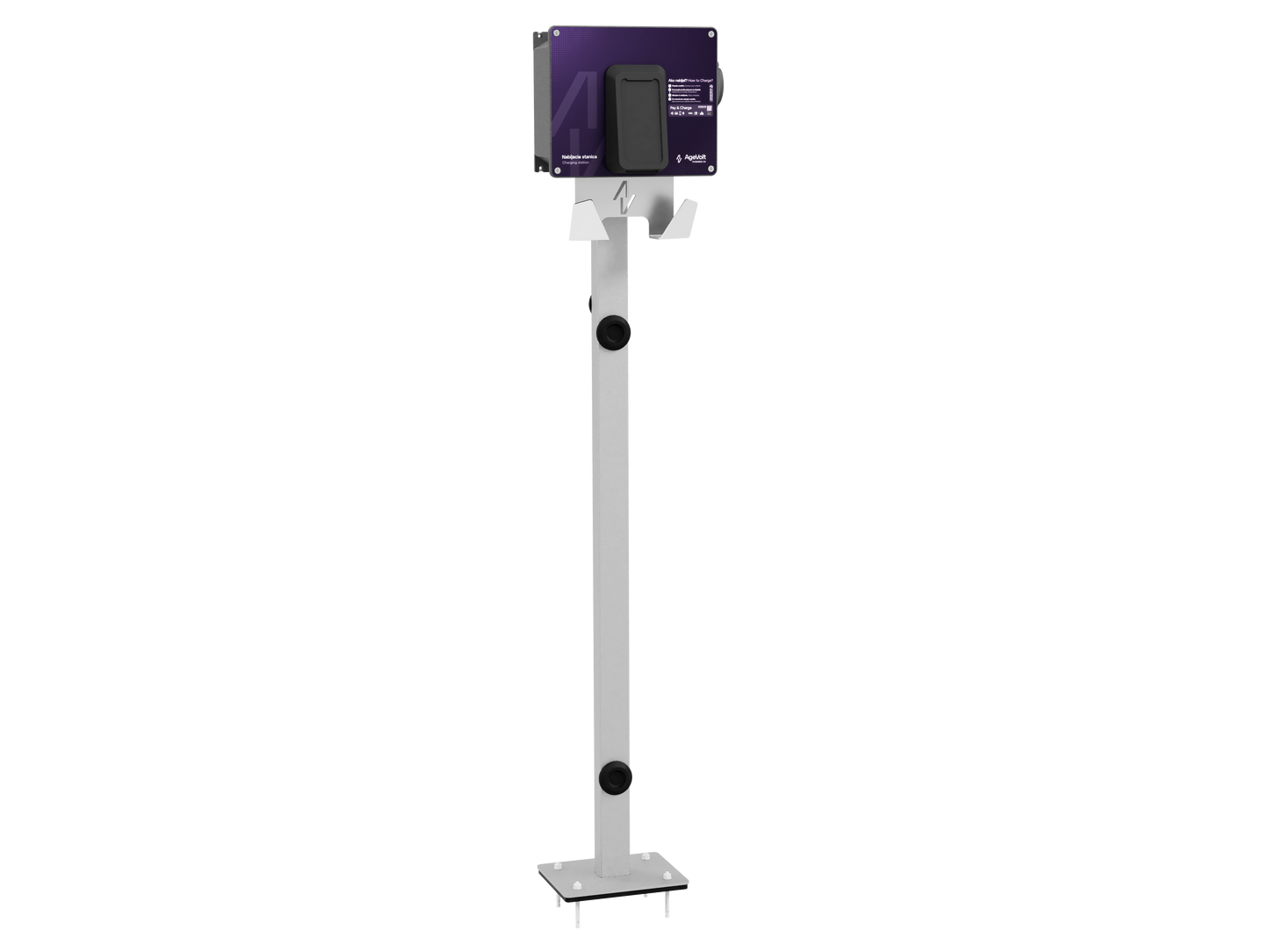

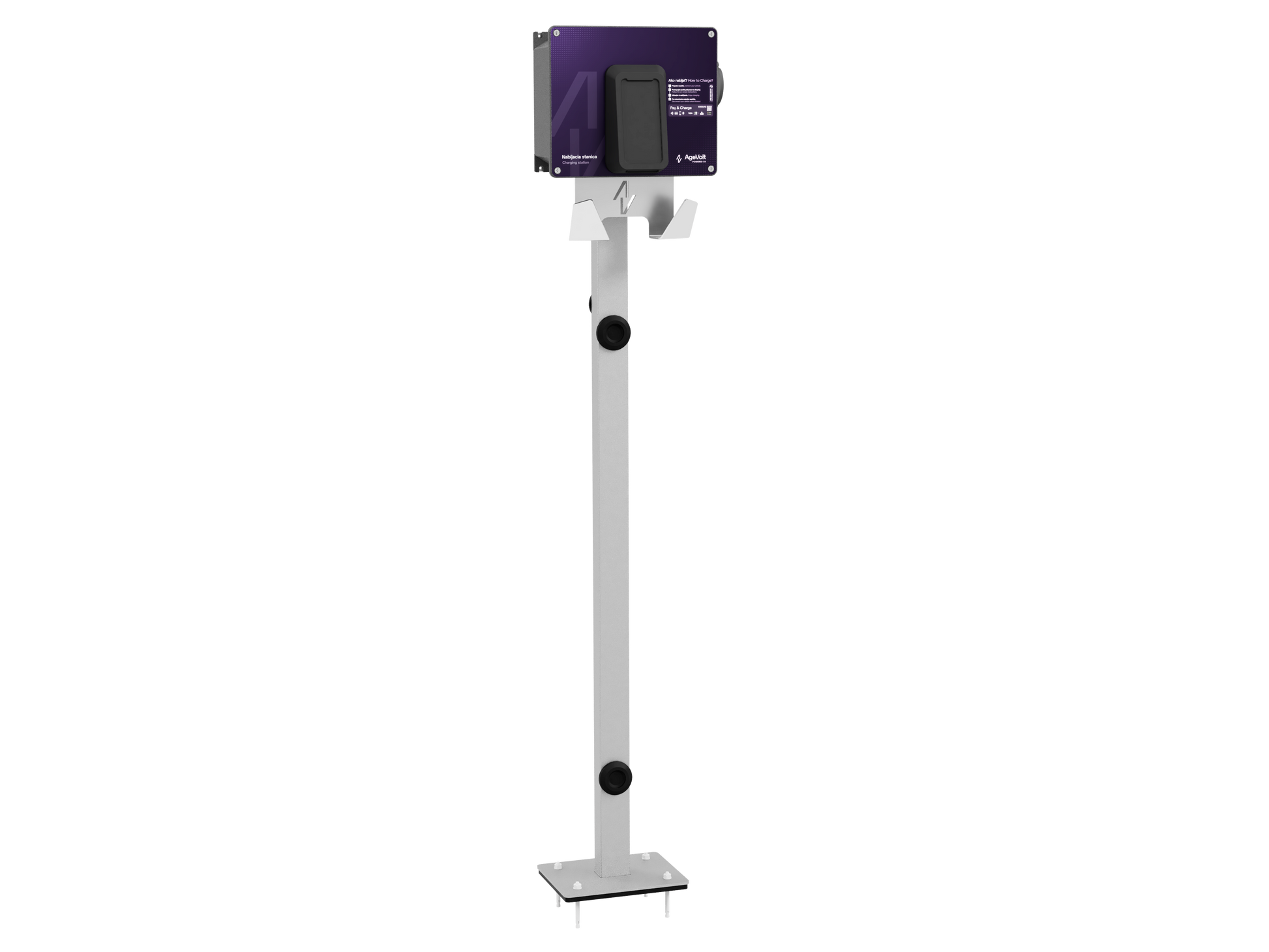

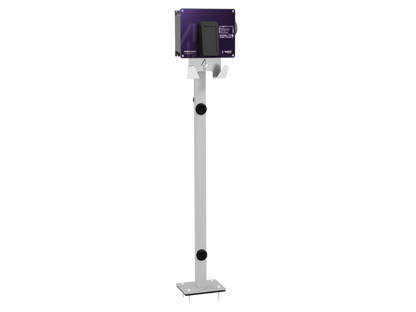

• on a stand, which can be purchased separately

Available configurations:

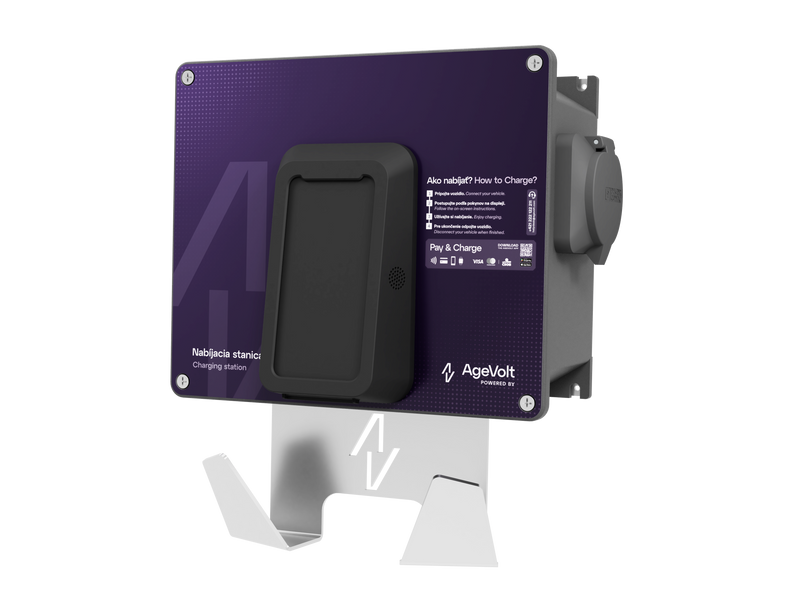

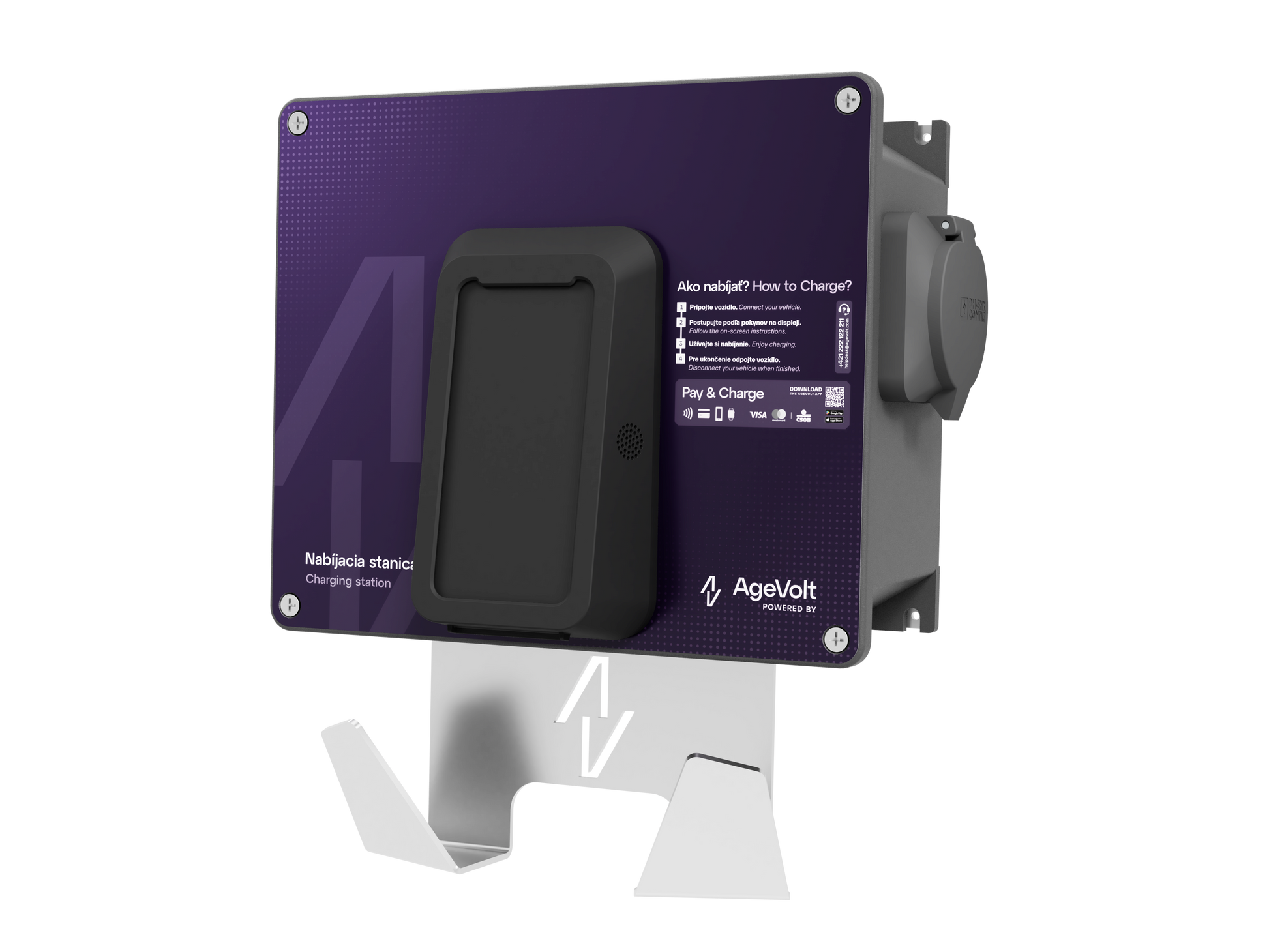

• with a socket featuring a cable lock. An ideal solution for public and unattended charging locations where there is a risk of damage to a permanently attached cable.

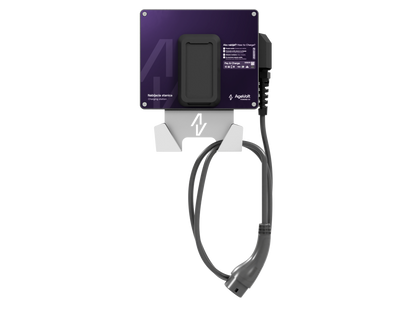

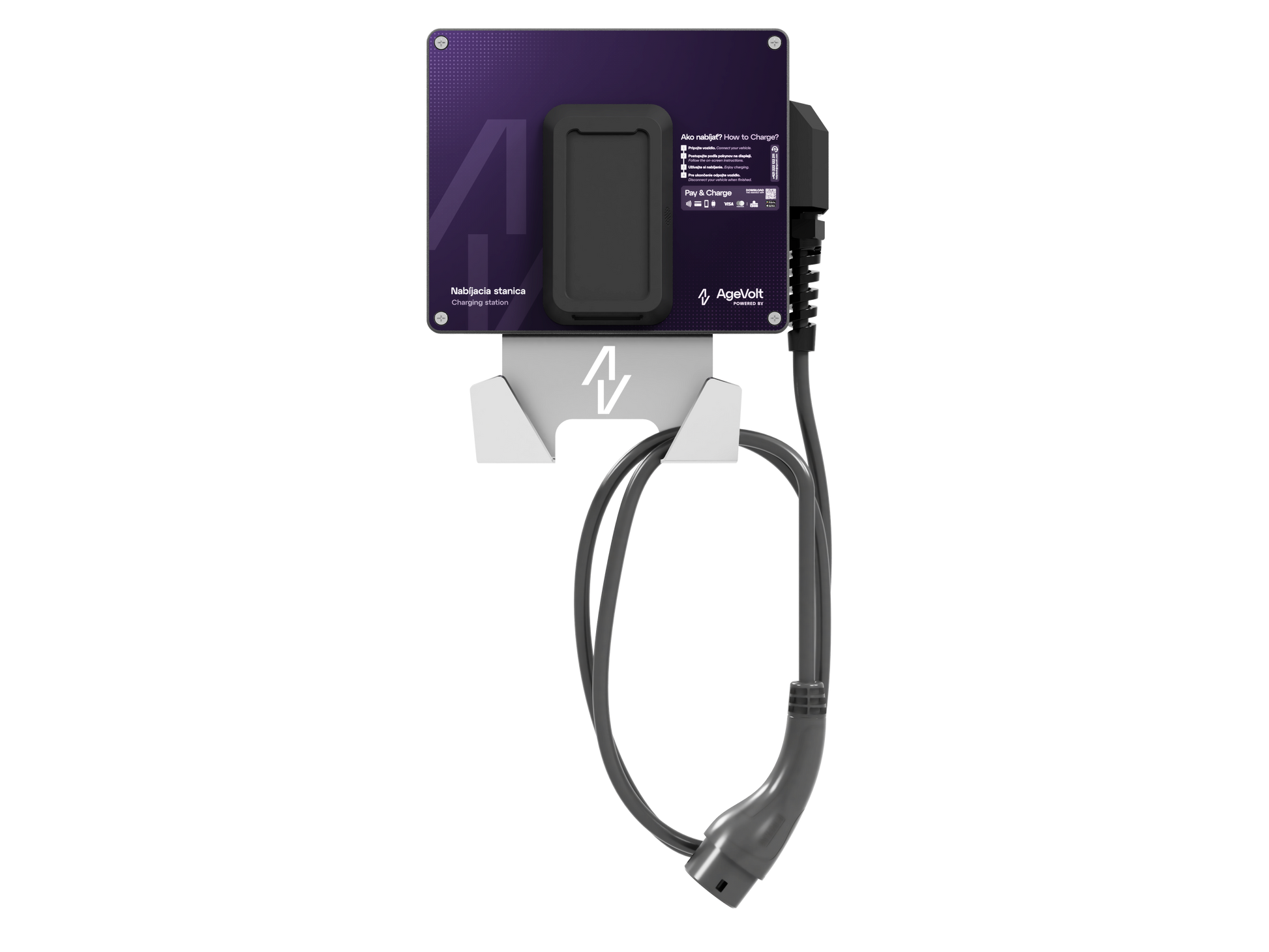

• with a cable, which is particularly suitable for private or supervised charging. It provides drivers with a more convenient and faster charging process, as they do not need to use their own cable.

Charging power

The charger is designed for a maximum charging power of 22 kW. The actual charging power is affected by

• the charging station settings,
• the vehicle’s maximum charging power, which is typically between 3.7 and 7.4 kW for single-phase onboard chargers and usually between 11 and 22 kW for three-phase onboard chargers.
• the cloud-based EMS settings

AgeVolt TouchPoint

TouchPoint is the charging station’s integrated touch and communication interface. It replaces both the original display and the separate AgeVolt SmartSystem module, which is no longer installed inside the charging station.

It provides intuitive station operation, user interaction, communication functions and readiness for advanced self-service scenarios. Thanks to its modern hardware equipment, it expands the possibilities for using the charging station in both corporate and public environments.

MyAgeVolt

Thanks to the OCPP 1.6-J protocol, the charging station can connect to standard cloud-based charging platforms, such as MyAgeVolt, which enables the charger to be shared with the public according to the owner’s own prices and rules, provides advanced fleet management, cost monitoring and many other functions.

The charging station features an NFC tag, which simplifies the use of the AgeVolt application.
