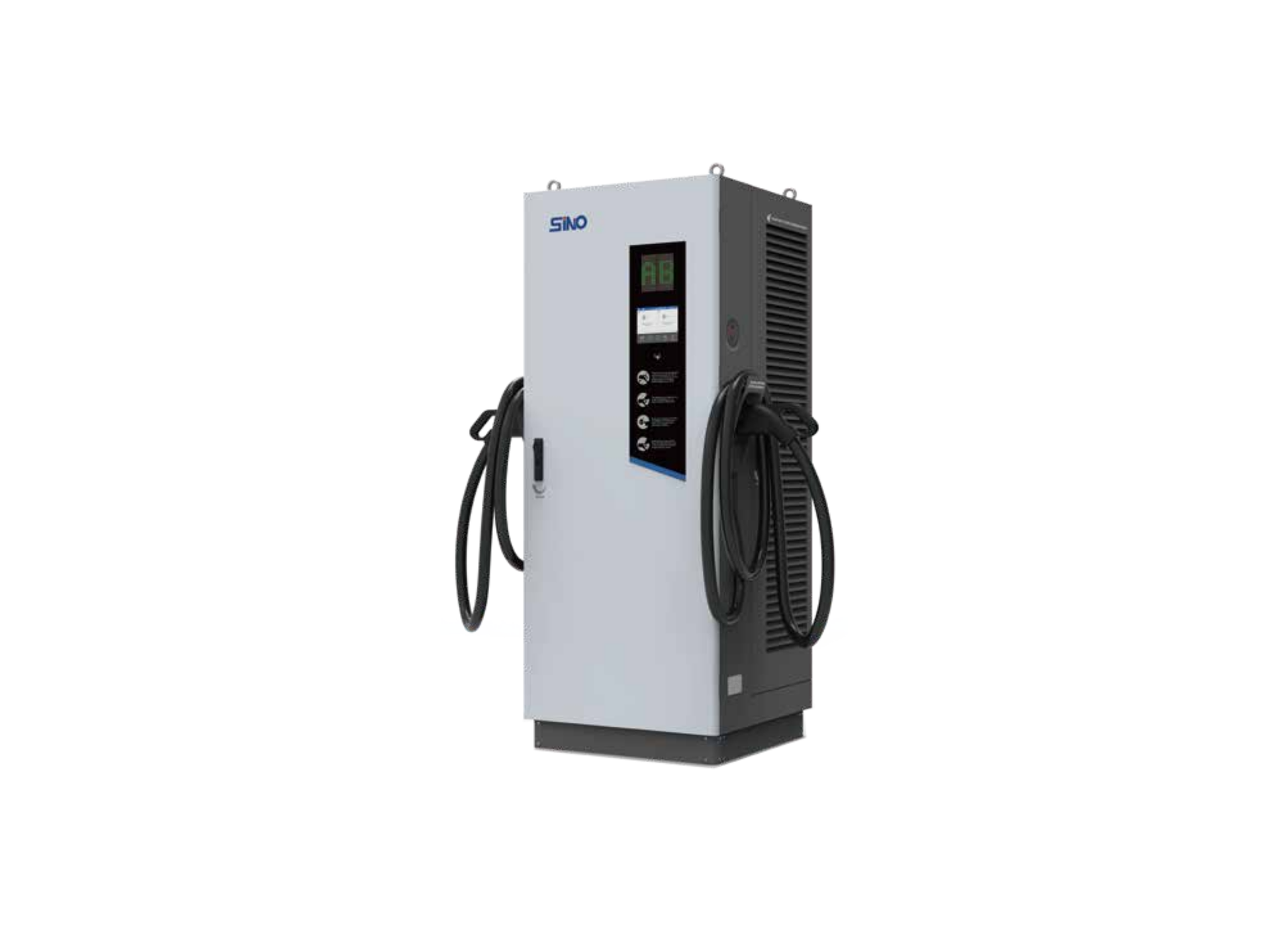

SINO DC CHARGER (240 kW) – an ultra-fast Dual Gun DC charger with two outputs – is a freestanding DC fast charger with a power output of up to 240 kW, designed for high-turnover locations such as motorways and rest areas, CPO sites, fleet depots, large car parks and bus stations. It supports simultaneous charging of two vehicles via two connectors and offers a wide output voltage range of 150–1000 V DC.

Main benefits

• Up to 240 kW DC
• Dual Gun – enables two vehicles to be charged simultaneously, with one or two charging interfaces depending on the configuration
• 150–1000 V DC – also suitable for modern EVs, including 800 V architectures, depending on the vehicle
• OCPP 1.6J (JSON) with ISO 15118 / DIN 70121 support for backend integration
• 7" colour touchscreen display, optionally 12", with RFID / App authentication and optional payment extensions depending on the equipment
• Durable design: IP54, IK10 and fan cooling

Technical specifications

Electrical – input

• Power supply: 3-phase 3P+N+PE, 400 VAC ±10%, 50/60 Hz
• THDi: ≤ 5%; Power factor: ≥ 0.98

DC output

• Output voltage: 150–1000 V DC
• Max. output current: 200 A, optionally 250 A
• Rated power: 240 kW (120–240 kW series)

Connectors (depending on configuration)

• Standard connector: CCS2
• Optional according to the manufacturer: CCS1 / CHAdeMO / GB/T (configuration depends on the market and order)

Control, connectivity and metering

• Display: 7" colour touchscreen, optionally 12"
• Authentication: Plug&Play / RFID (ISO/IEC 14443) / App / custom payment solutions
• Communication: Ethernet, optionally 4G
• Energy metering: DC meter, 1% accuracy
• Backend protocol: OCPP 1.6J (JSON); the materials also mention OCPP 2.0.1 / “OCPP2.x coming soon”

Protection

• RCD: yes; internal fuse: yes
• Protection: overvoltage/undervoltage, overcurrent, short circuit, temperature, lightning, earth fault and surge protection

Environment and durability

• Operating temperature: -30 °C to +55 °C
• Humidity: max. 90% RH, non-condensing; altitude: ≤ 2000 m
• Ingress and impact protection: IP54, IK10

Mechanical specifications

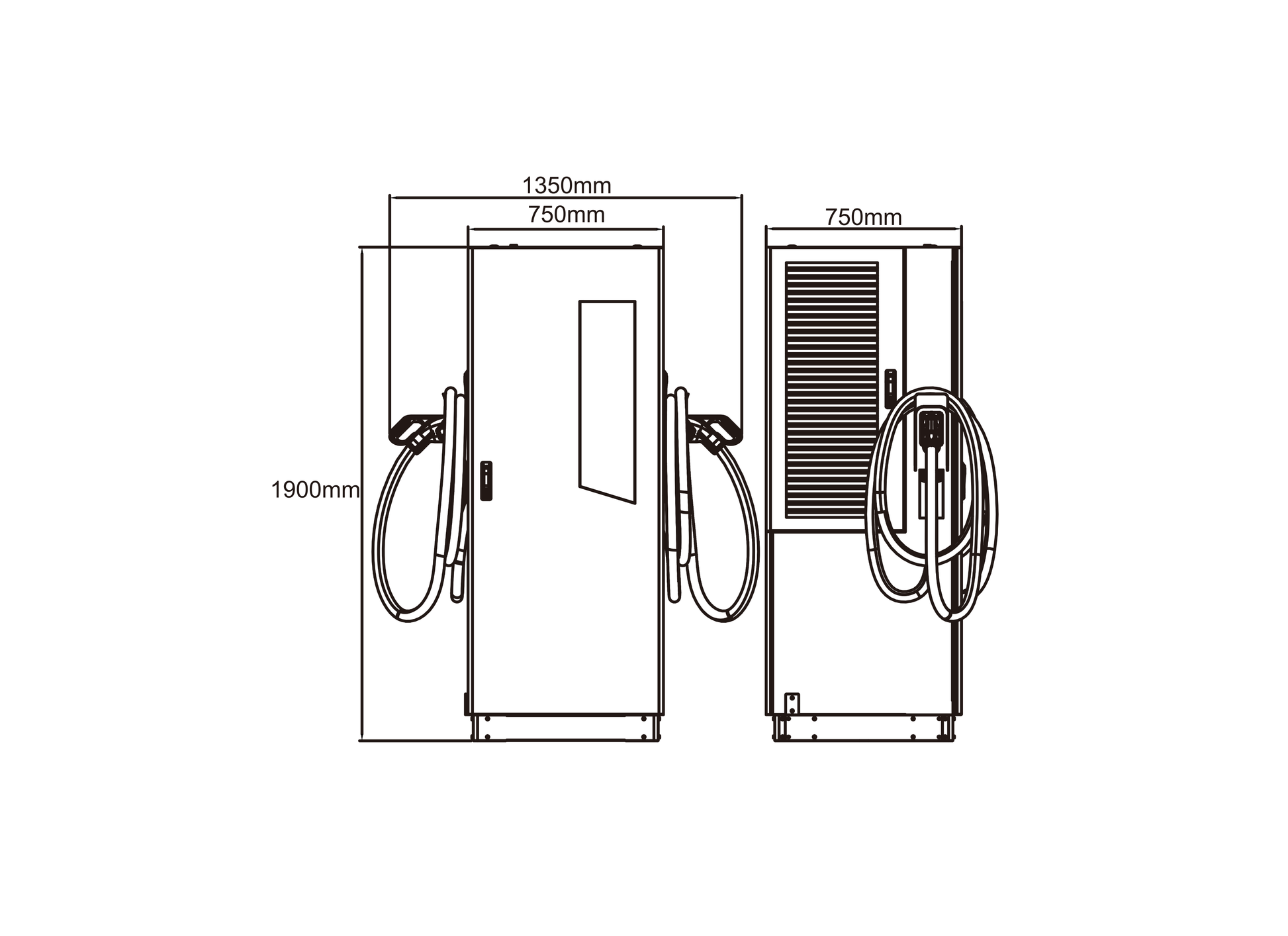

• Dimensions (W×D×H): 750 × 750 × 1900 mm
• Cable length: 5 m (customisable)
• Weight: the supporting documents provide different values depending on the source and configuration, including 263 kg net / 298 kg gross and higher values; I recommend stating “depending on configuration” in the e-shop.

Standards and certification

• IEC 62196-1/-3, IEC 61851-1/-23/-24
• Certificates: TUV, CE, CB
