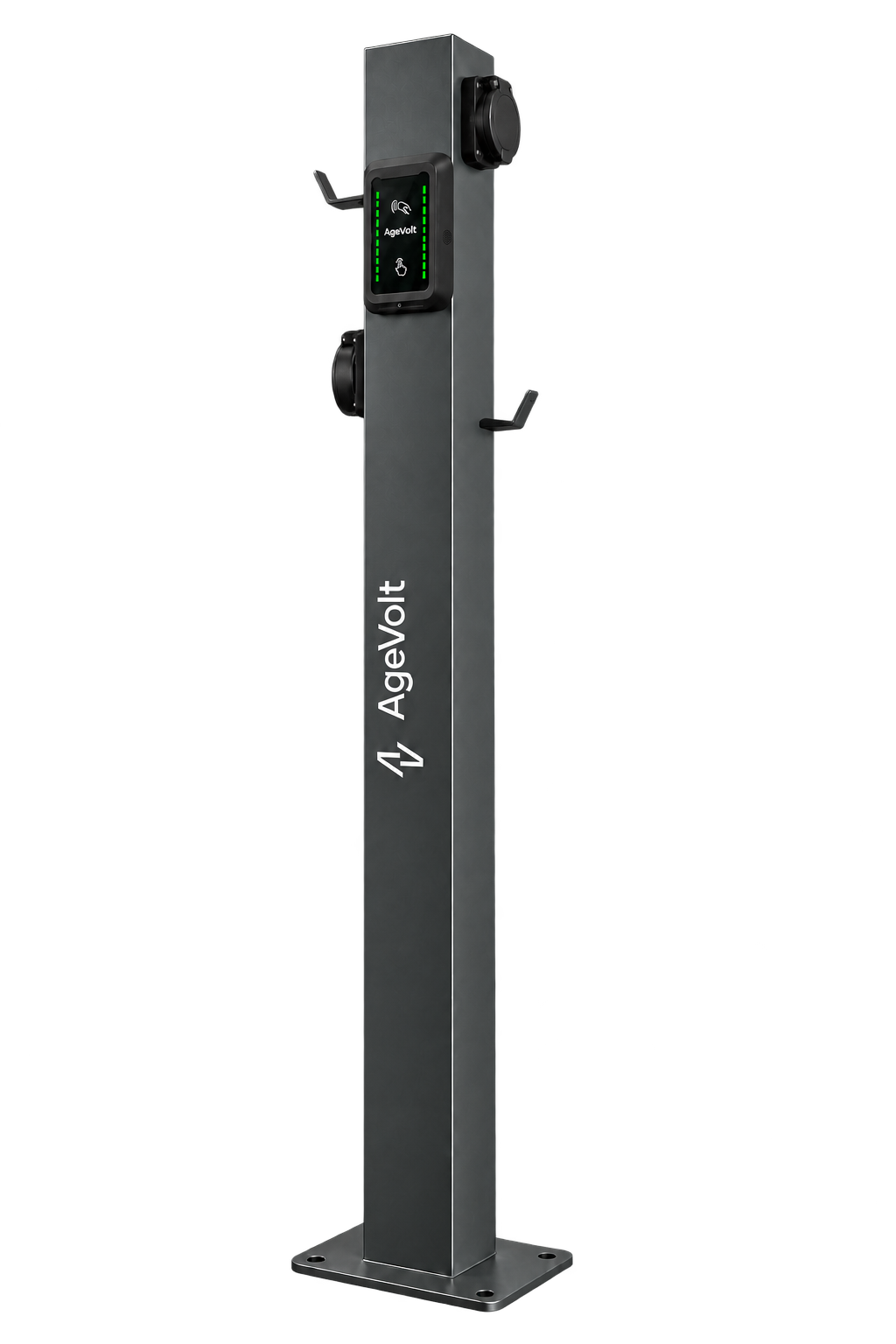

An intelligent AC charging station for electric vehicles with two charging points and a maximum charging capacity of 2 × 22 kW. The charger can be configured according to the individual needs of its owner, who can also choose their own branding. It is suitable for installation both indoors and outdoors.

Sophisticated user and power management, charging data collection, report generation and other advanced features are available both offline, thanks to the AgeVolt SmartSystem, and online, after connecting to a digital platform such as MyAgeVolt.

Installation:

• on a SmartBase – a chamber with a cover in which the cabling is placed and integrated into the surrounding environment.
• on a SolidBase – a steel base designed for solid surfaces where deep excavation is not possible.

Available configurations:

• with sockets featuring a cable lock. An ideal solution for public and unattended charging locations where there is a risk of damage to permanently attached cables.
• with cables, particularly suitable for private or supervised charging. It provides drivers with a more convenient and faster charging process, as they do not need to use their own cable.

Charging capacity

The charger is designed for a maximum charging capacity of 2 × 22 kW. The actual charging capacity is affected by:

• the charging station settings,
• the vehicle’s maximum charging capacity, which is typically between 3.7 and 7.4 kW for single-phase onboard chargers and usually between 11 and 22 kW for three-phase onboard chargers.
• the cloud-based EMS settings

AgeVolt TouchPoint

TouchPoint is the charging station’s integrated touch and communication interface. It replaces both the original display and the separate AgeVolt SmartSystem module, which is no longer installed inside the charging station, and it can also provide payment terminal functionality.

It provides intuitive station operation, user interaction, communication functions and readiness for advanced self-service scenarios. Thanks to its modern hardware equipment, it expands the possibilities for using the charging station in both corporate and public environments.

MyAgeVolt

Thanks to the OCPP 1.6-J protocol, the charging station can connect to standard cloud-based charging platforms, such as MyAgeVolt, which enables the charger to be shared with the public according to the owner’s own prices and rules, provides advanced fleet management, cost monitoring and many other features.

The charging station features 2 NFC tags, which simplify the use of the AgeVolt application.

Charging stations are available to order.
