AgeVolt SolidBase

Product documentation

SolidBase is a steel base for solid surfaces. The dimensions below describe the illustrated configuration. Suitability, load capacity, surface treatment and anchoring must be checked against the supplied model and installation drawing.

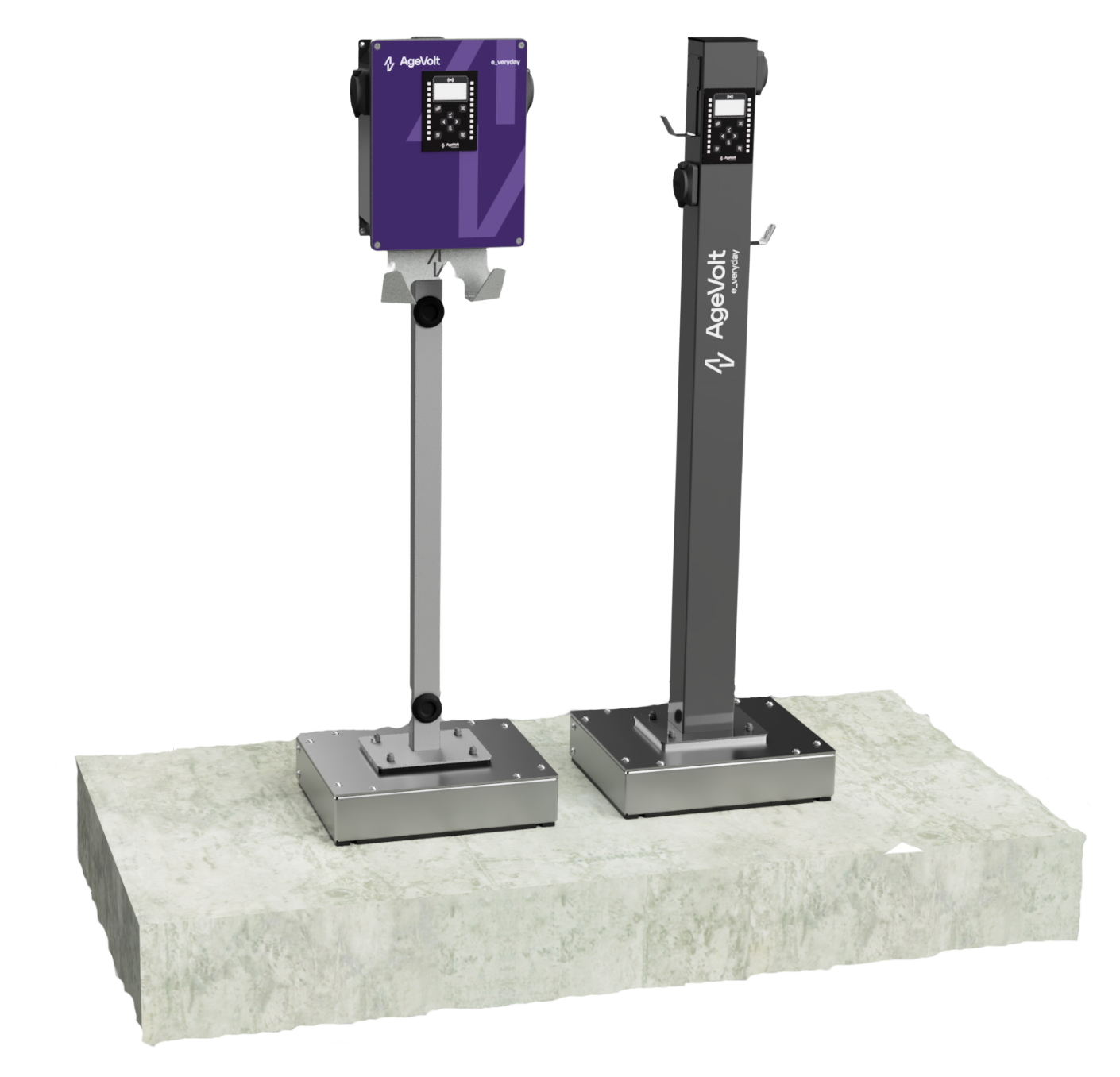

SolidBase is a robust iron platform designed to create space for cable routing and routing. It provides a stable base for mounting a charging station (e.g. Pillar Slim or a pillar with a Wallbox).

It is an ideal solution in places with solid substrates where excavation is not possible, such as concrete or asphalt surfaces, such as garages.

Uses:

  • Installing charging stations in public car parks, commercial sites or near family homes.

  • Cable connections where safe and visually tidy disconnection space is needed.

SolidBase provides space for incoming and looped cabling beneath the station. Select the appropriate type and fastening for the station and supporting surface.



Benefits:

✔ Cabling flexibility: cable entry from underneath or behind.

✔ Cable protection: conceals cable exits and provides space for safe disconnection and looped cabling.

Stability: install the base level and anchor it to a suitable supporting surface according to the installation drawing.

✔ Versatility: a base for various charging station and pillar types.

✔ Simple installation: straightforward installation and cable preparation.



Technical specification:

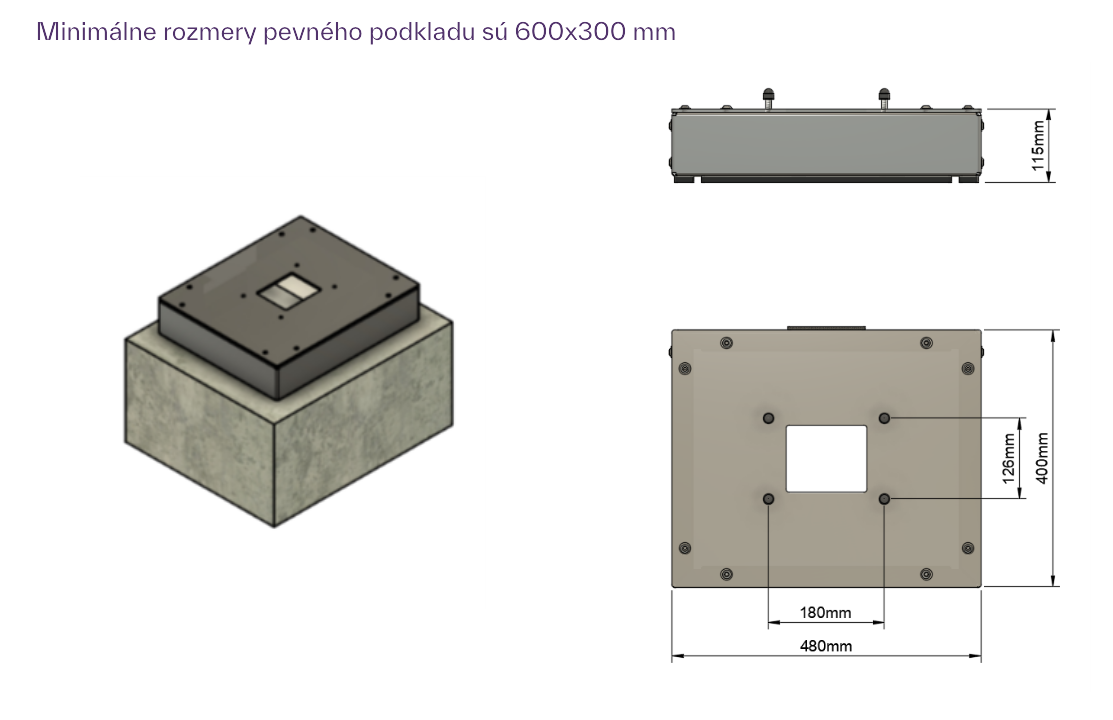

Dimensions: 480x115x400mm

Load capacity: must be checked for the specific configuration and anchoring method.

Material: steel structure. Select surface treatment for the supplied configuration.

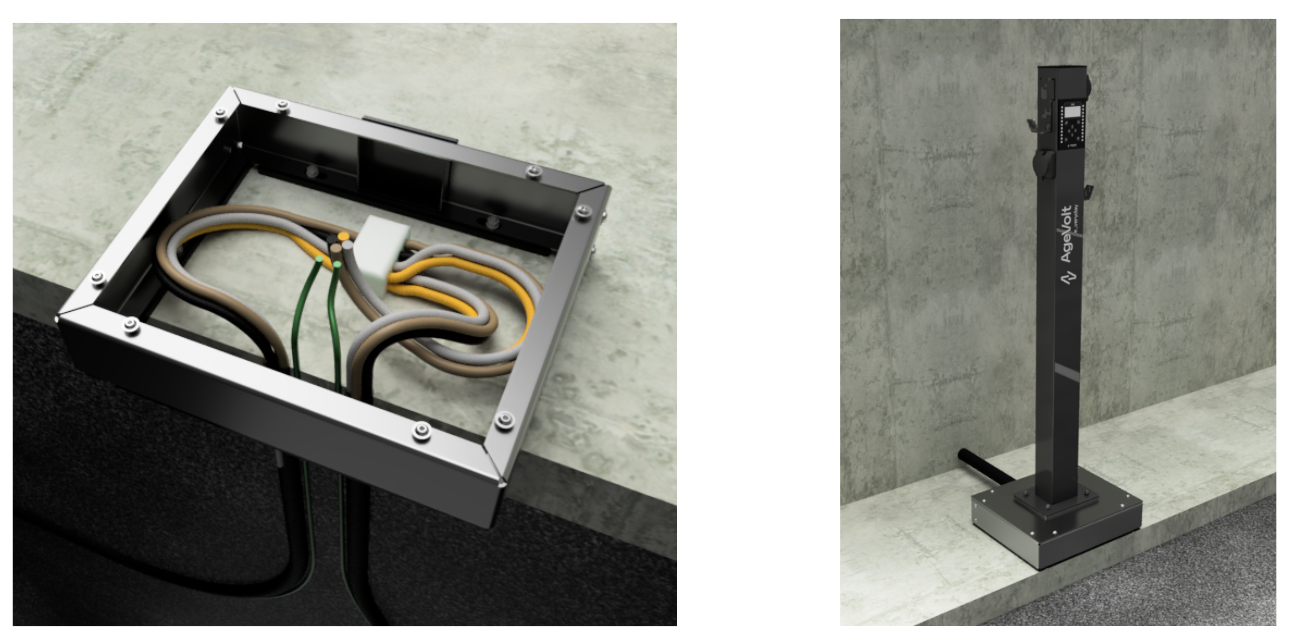

Cable placement:
